Text to SQL Query & Automated Visualization with Vanna AI & Ollama (AI Powered Copilot for SQL Queries)-SQLite Example

Learn to Connect Databases and Query in Natural Language with Vanna AI+Ollama and automated Visualization with Plotly, Other Important Tools/Database/LLM in this Video are ChromaDB/Jupyter Notebook/SQlite/Mistral/Flask.

Vanna AI

https://github.com/vanna-ai/vanna

https://vanna.ai/docs

Chat with your SQL database. Accurate Text-to-SQL Generation via LLMs using RAG

Let Vanna.AI write your SQL for you

The fastest way to get actionable insights from your database just by asking questions

Why Vanna

Open-Source

The Vanna Python package and the various frontend integrations are all open-source. You can run Vanna on your own infrastructure.

High accuracy on complex datasets

Vanna’s capabilities are tied to the training data you give it. More training data means better accuracy for large and complex datasets.

Designed for security

Your database contents are never sent to the LLM unless you specifically enable features that require it. The metadata storage layer only sees schemas, documentation, and queries.

Self learning

As you use Vanna more, your model continuously improves as we augment your training data.

Supports many databases

Snowflake , BigQuery, Postgres, and many others. You can easily make a connector for any database.

Choose your front end

Start in a Jupyter Notebook. Expose to business users via Slackbot, web app, Streamlit app, any other frontend. Even integrate in your web app for customers.

Ollama: Large Language Model Runner.

https://github.com/ollama/ollama

https://ollama.com

https://hub.docker.com/r/ollama/ollama

https://github.com/ollama/ollama-python

https://github.com/ollama/ollama-js

ChromaDB:

https://github.com/chroma-core/chroma

https://www.trychroma.com

the AI-native open-source embedding database

Simple: Fully-typed, fully-tested, fully-documented == happiness
Integrations: LangChain (python and js), LlamaIndex and more soon
Dev, Test, Prod: the same API that runs in your python notebook, scales to your cluster
Feature-rich: Queries, filtering, density estimation and more
Free & Open Source: Apache 2.0 Licensed

Use case: Chat

For example, the “Chat your data” use case:

Add documents to your database. You can pass in your own embeddings, embedding function, or let Chroma embed them for you.
Query relevant documents with natural language.
Compose documents into the context window of an LLM like GPT3 for additional summarisation or analysis.

https://www.sqlite.org

What Is SQLite?

SQLite is a C-language library that implements a small, fast, self-contained, high-reliability, full-featured, SQL database engine. SQLite is the most used database engine in the world. SQLite is built into all mobile phones and most computers and comes bundled inside countless other applications that people use every day

SQLite source code is in the public-domain and is free to everyone to use for any purpose.

https://jupyter.org

JupyterLab is the latest web-based interactive development environment for notebooks, code, and data. Its flexible interface allows users to configure and arrange workflows in data science, scientific computing, computational journalism, and machine learning. A modular design invites extensions to expand and enrich functionality.

https://plotly.com/python

Plotly’s Python graphing library makes interactive, publication-quality graphs. Examples of how to make line plots, scatter plots, area charts, bar charts, error bars, box plots, histograms, heatmaps, subplots, multiple-axes, polar charts, and bubble charts.
Now here is How to get started.

Step 01: Open Jupyter Notebook and type below command

pip install 'vanna[chromadb]'

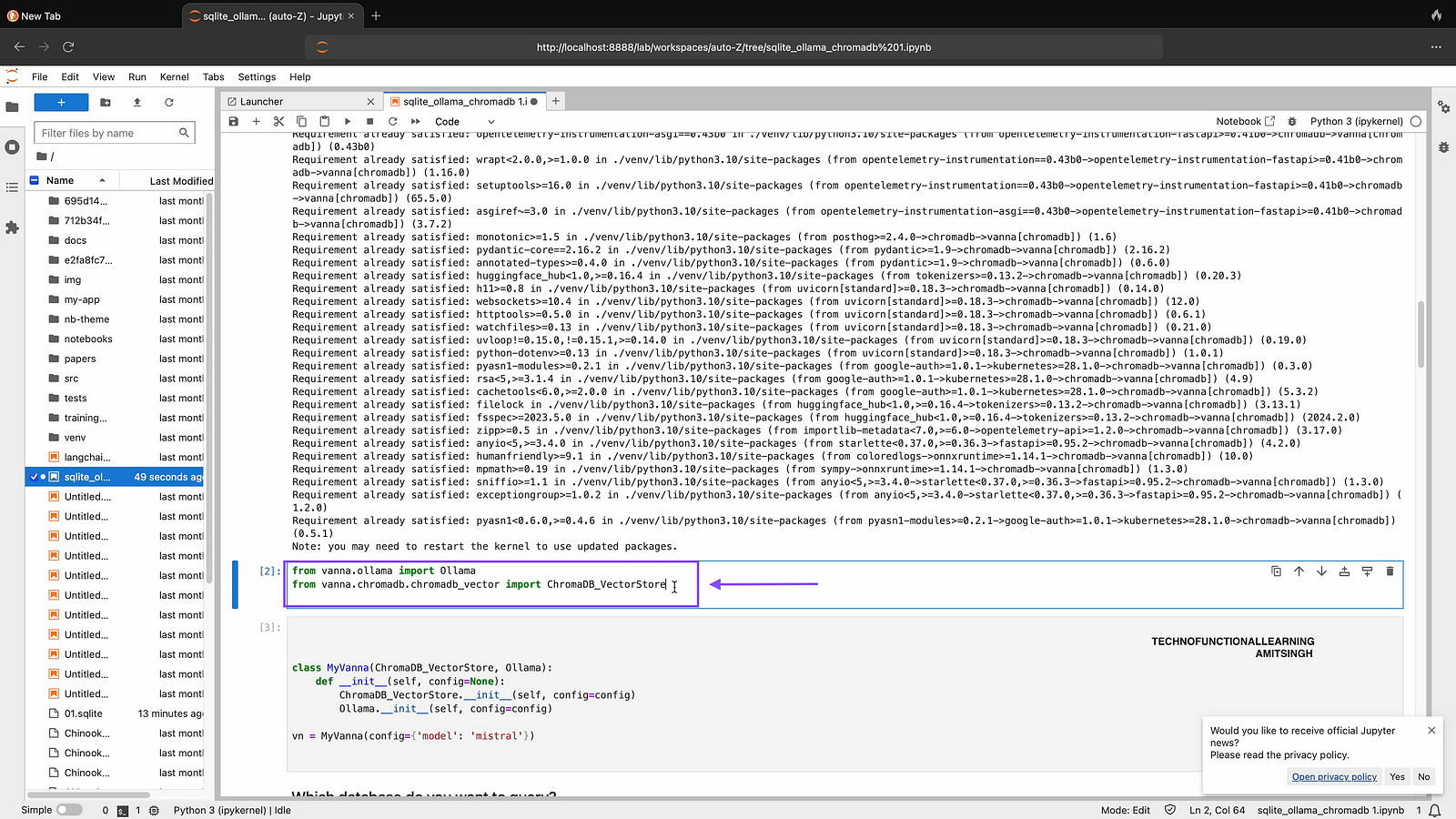

Step 02: Now after running first command type below command in Jupyter Notebook.

from vanna.ollama import Ollama
from vanna.chromadb.chromadb_vector import ChromaDB_VectorStore

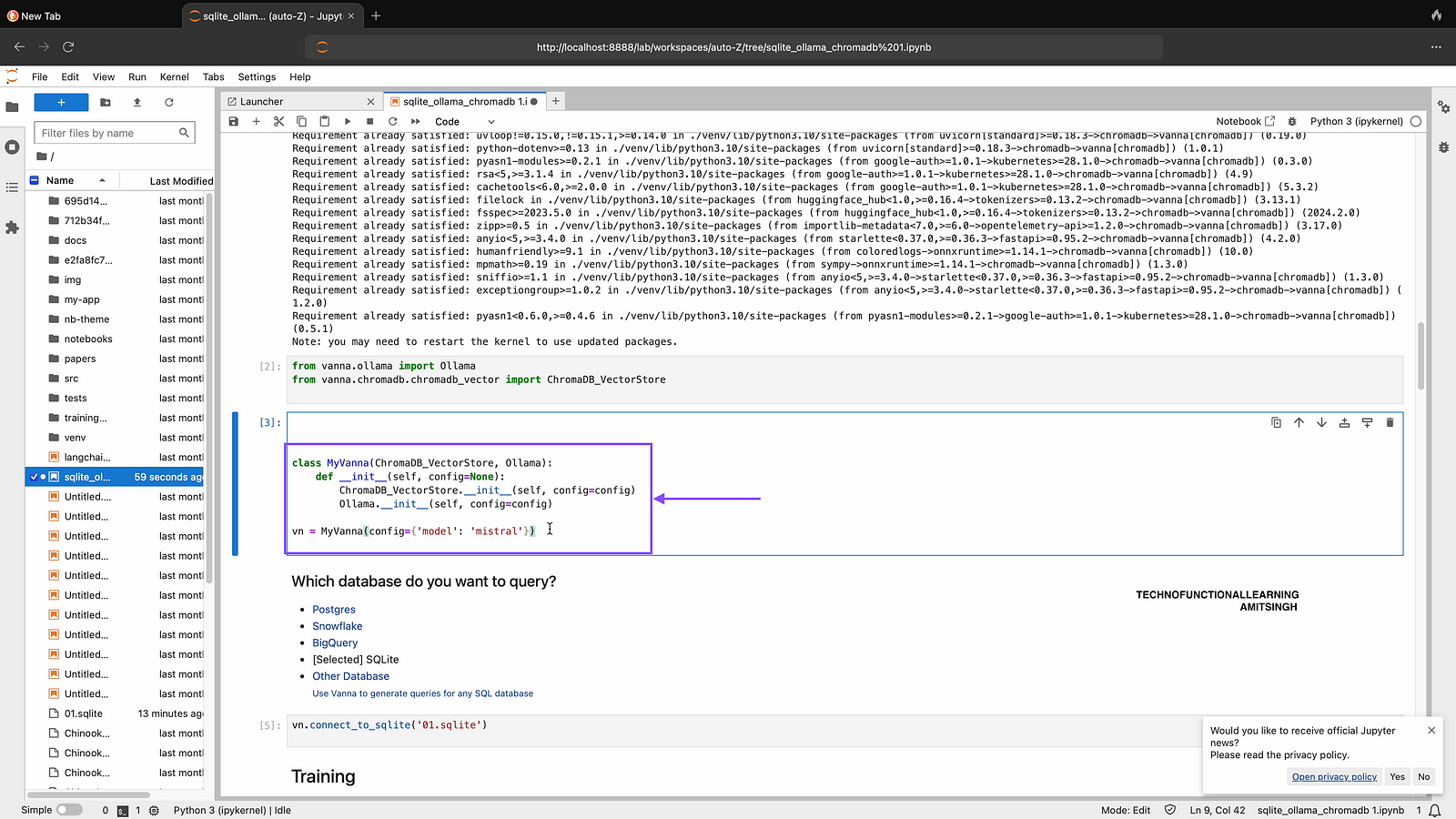

Step 03: Now Connect Vanna/Chromadb/Ollama-Mistral Model by typing and running below command in Jupyter Notebook.

class MyVanna(ChromaDB_VectorStore, Ollama):
    def __init__(self, config=None):
        ChromaDB_VectorStore.__init__(self, config=config)
        Ollama.__init__(self, config=config)

vn = MyVanna(config={'model': 'mistral'})

if by any chance you get error that mistral model not found then type below command to pull mistral model

ollama.pull('mistral')

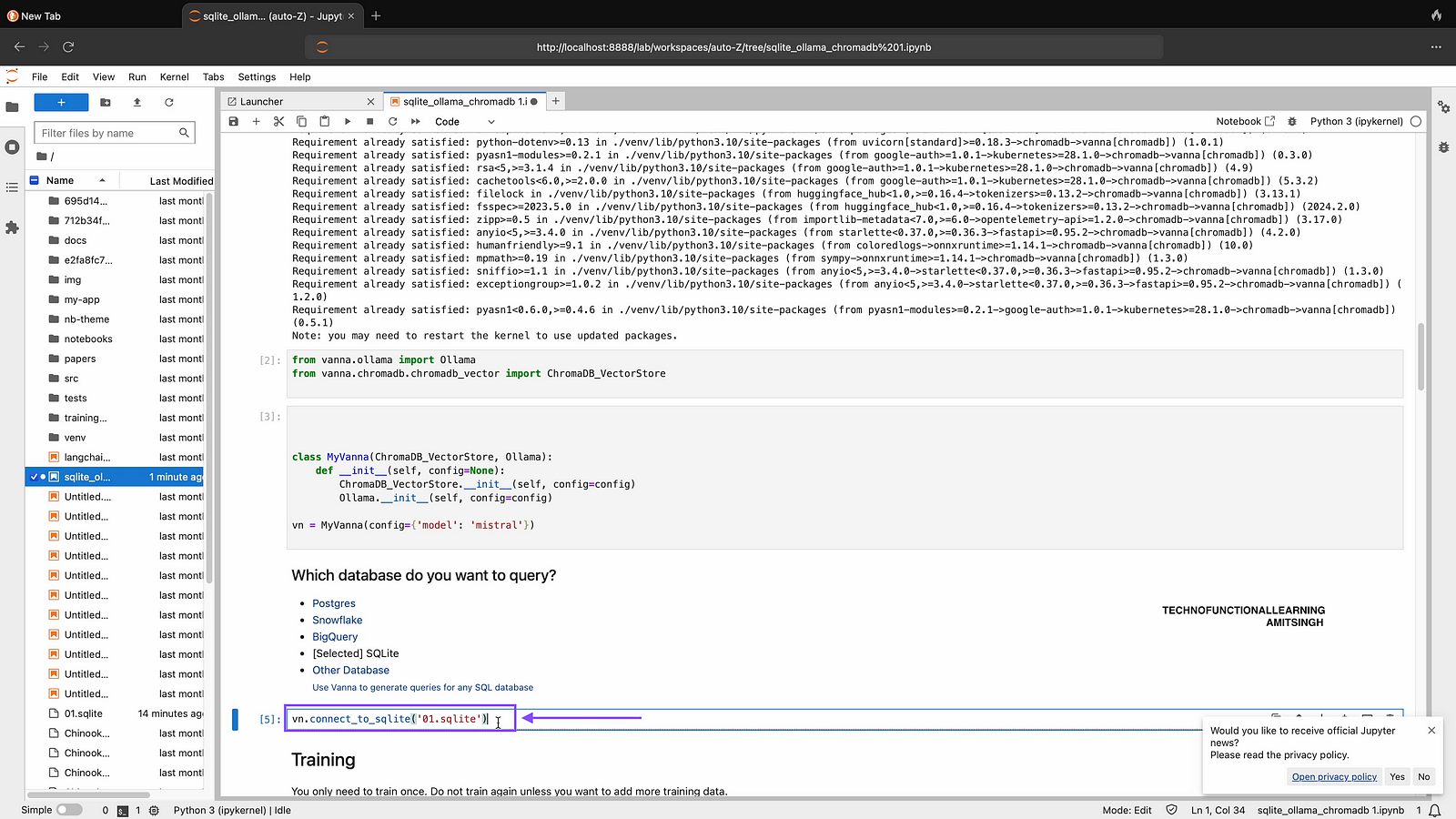

Step 04: Now Connect with SQLite DB with below command, In my case SQlite name is 01, you can choose your SQliteDB

vn.connect_to_sqlite('01.sqlite')

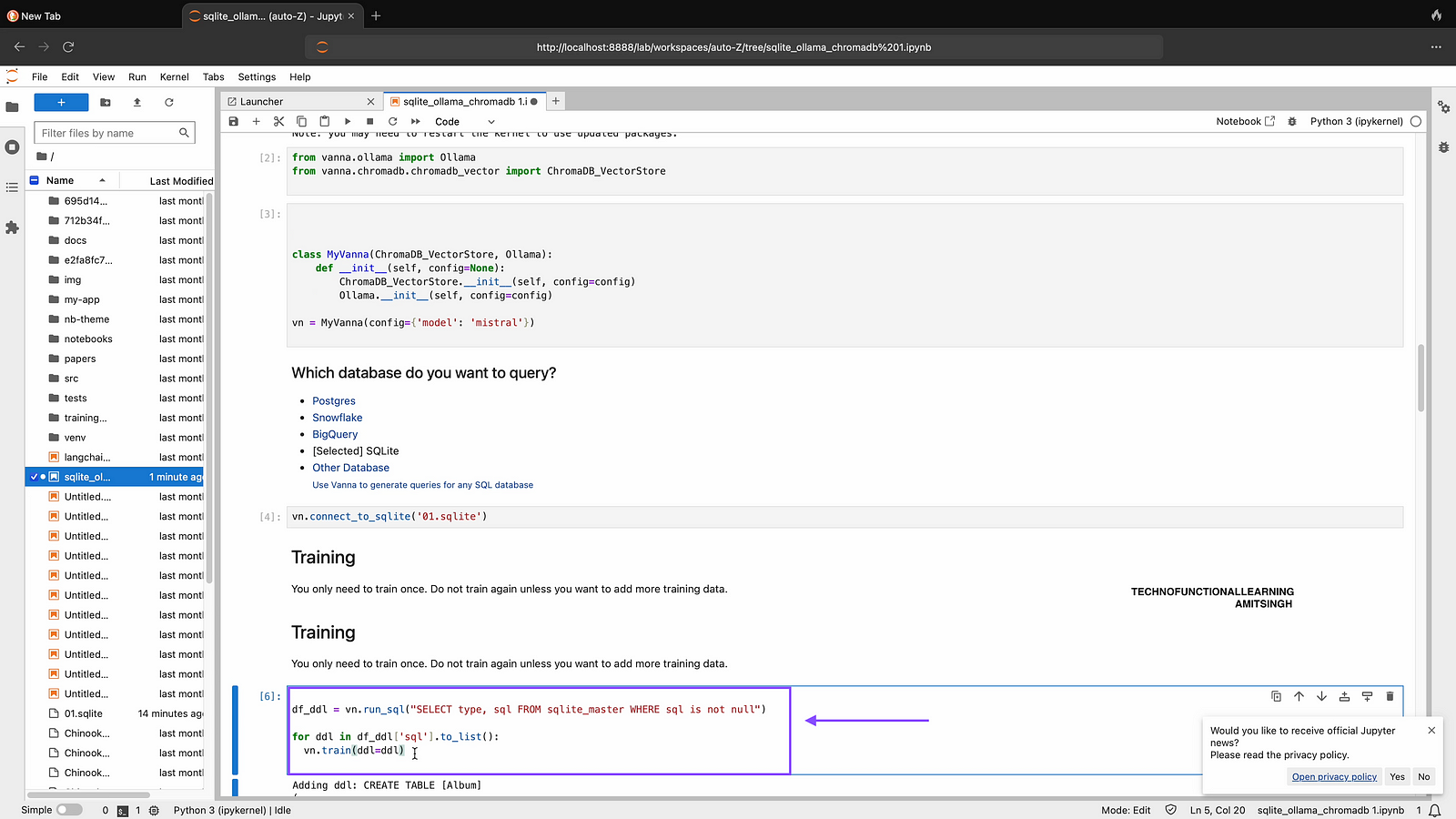

Step 05: You can training you data once unless you have added other data with below command.

df_ddl = vn.run_sql("SELECT type, sql FROM sqlite_master WHERE sql is not null")

for ddl in df_ddl['sql'].to_list():
  vn.train(ddl=ddl)

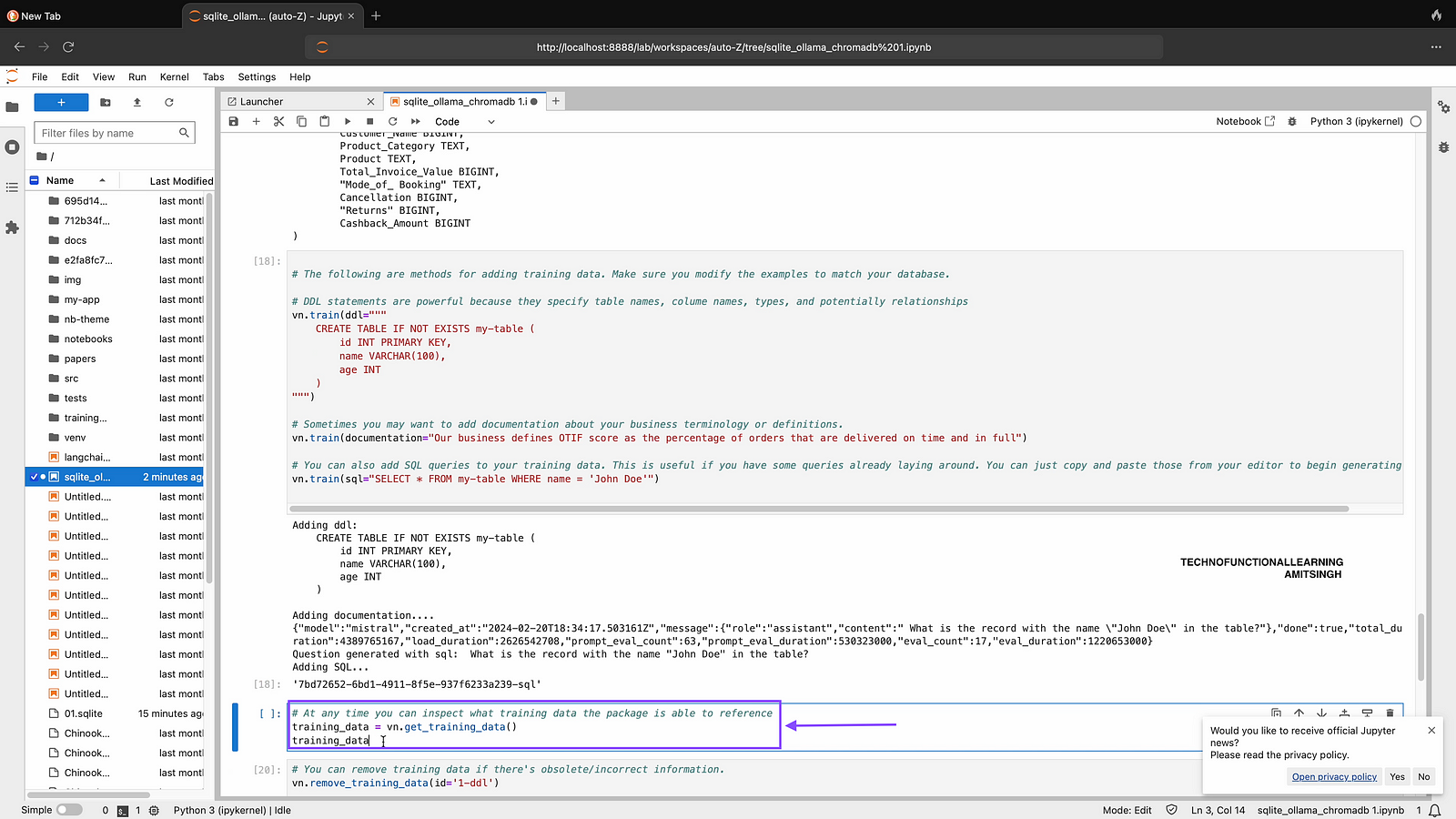

Step 06: At any time you can inspect what training data the package is able to reference

training_data = vn.get_training_data()
training_data

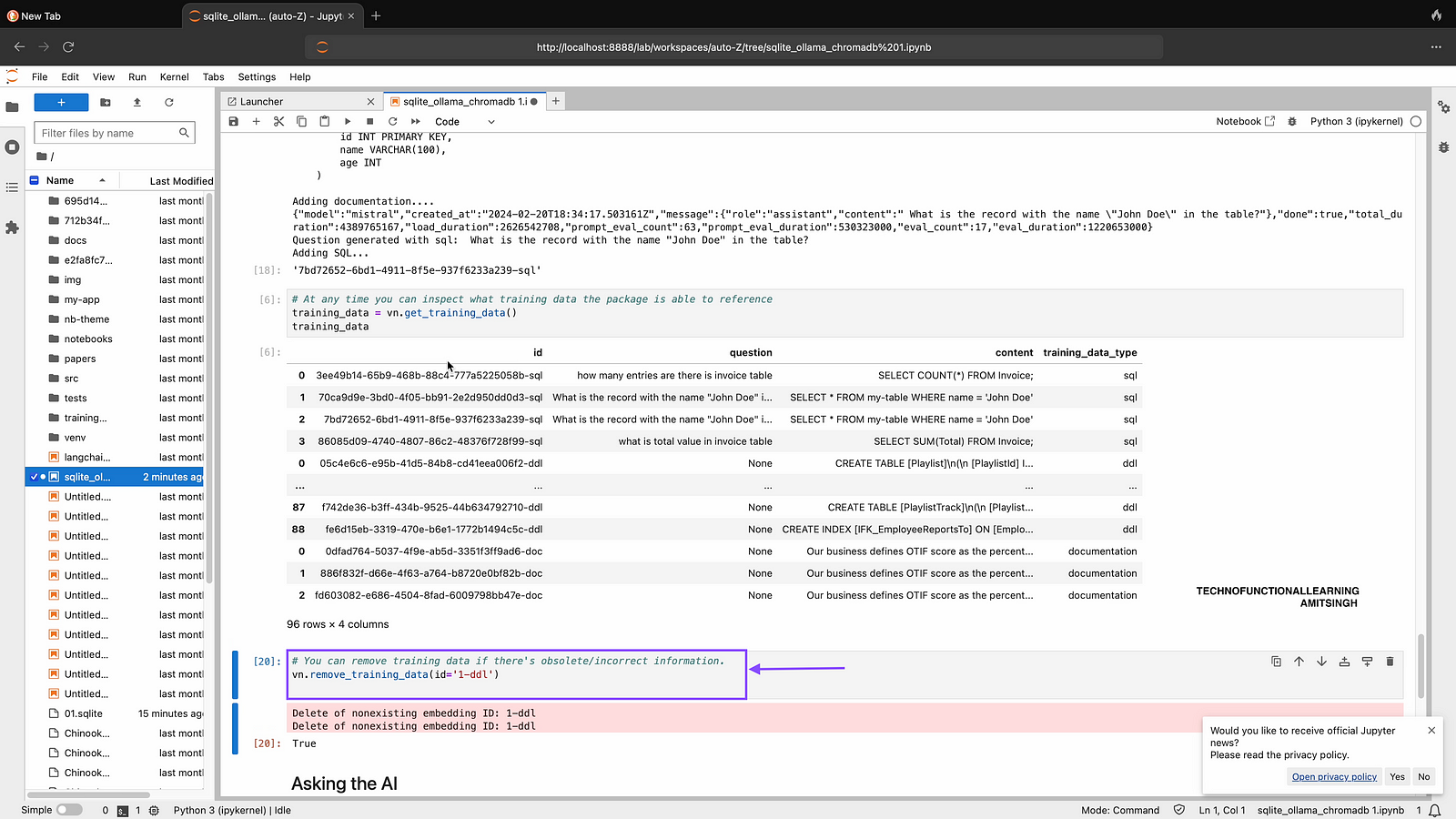

Step 07: You can remove training data if there’s obsolete/incorrect information.

vn.remove_training_data(id='1-ddl')

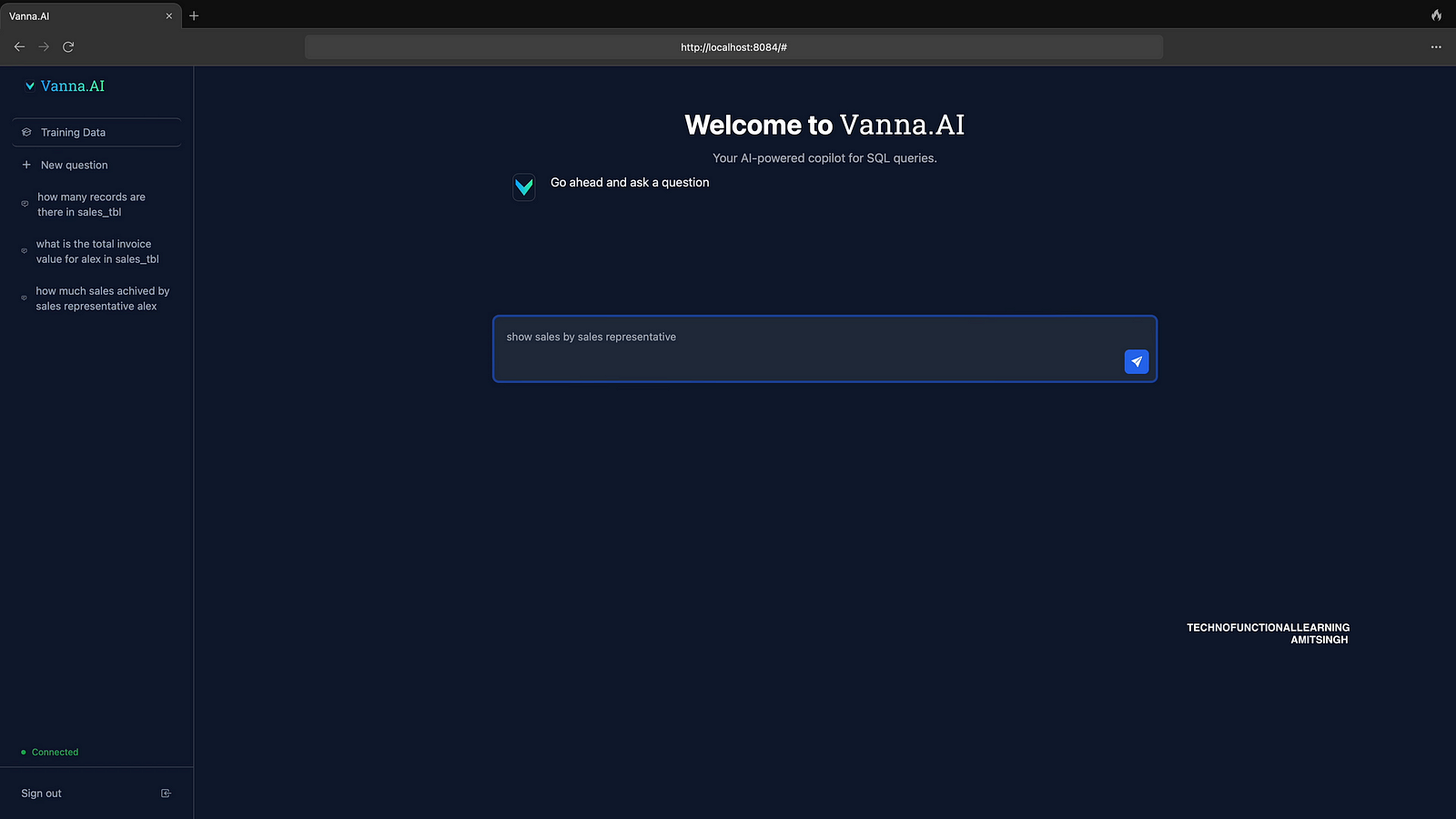

Step 08: Now You can start flask app by typing and running below command in Jupyter Notebook, App will be available at localhost:8084 and start Asking your question in Natural Language.

from vanna.flask import VannaFlaskApp
app = VannaFlaskApp(vn)
app.run()

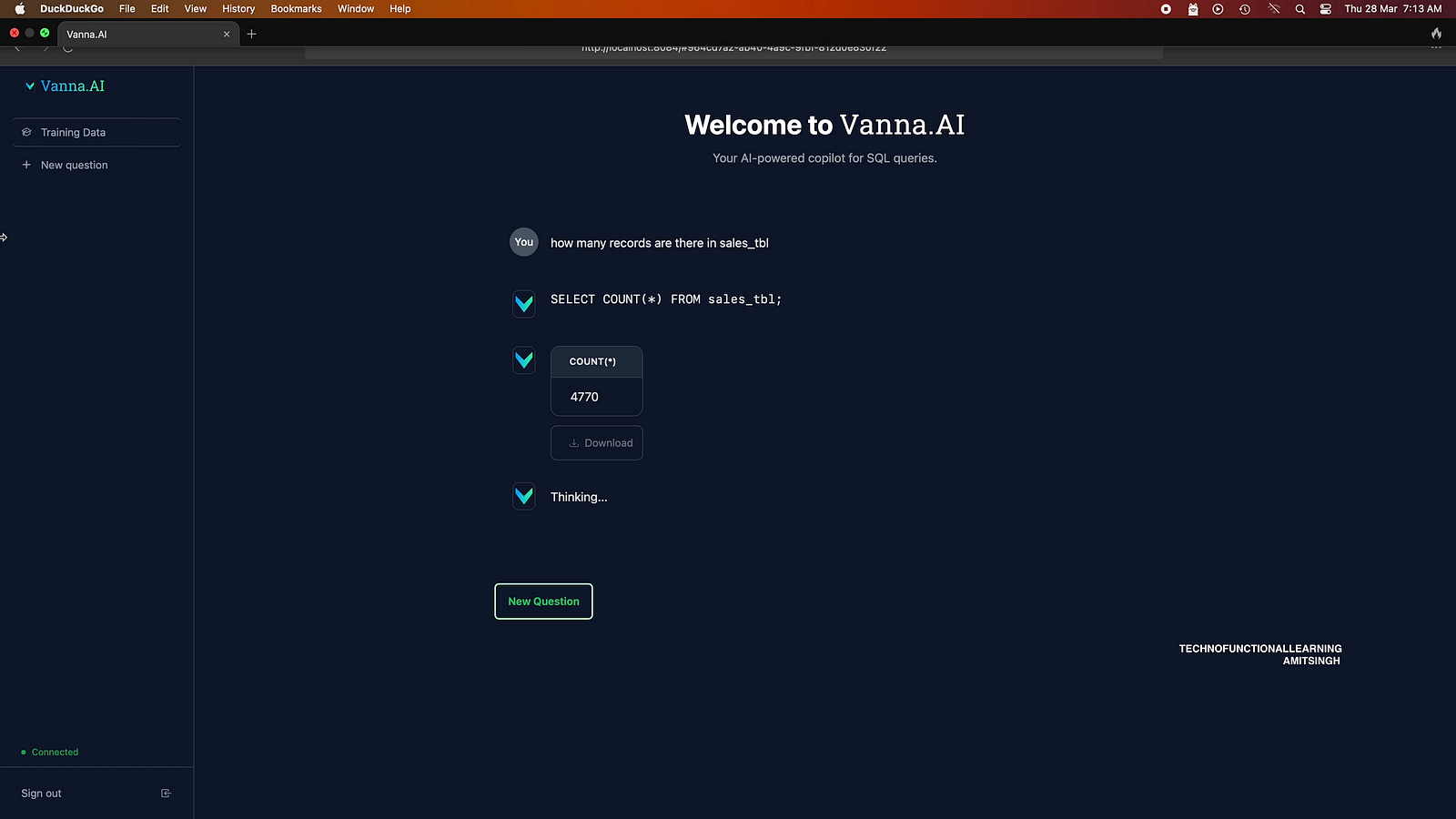

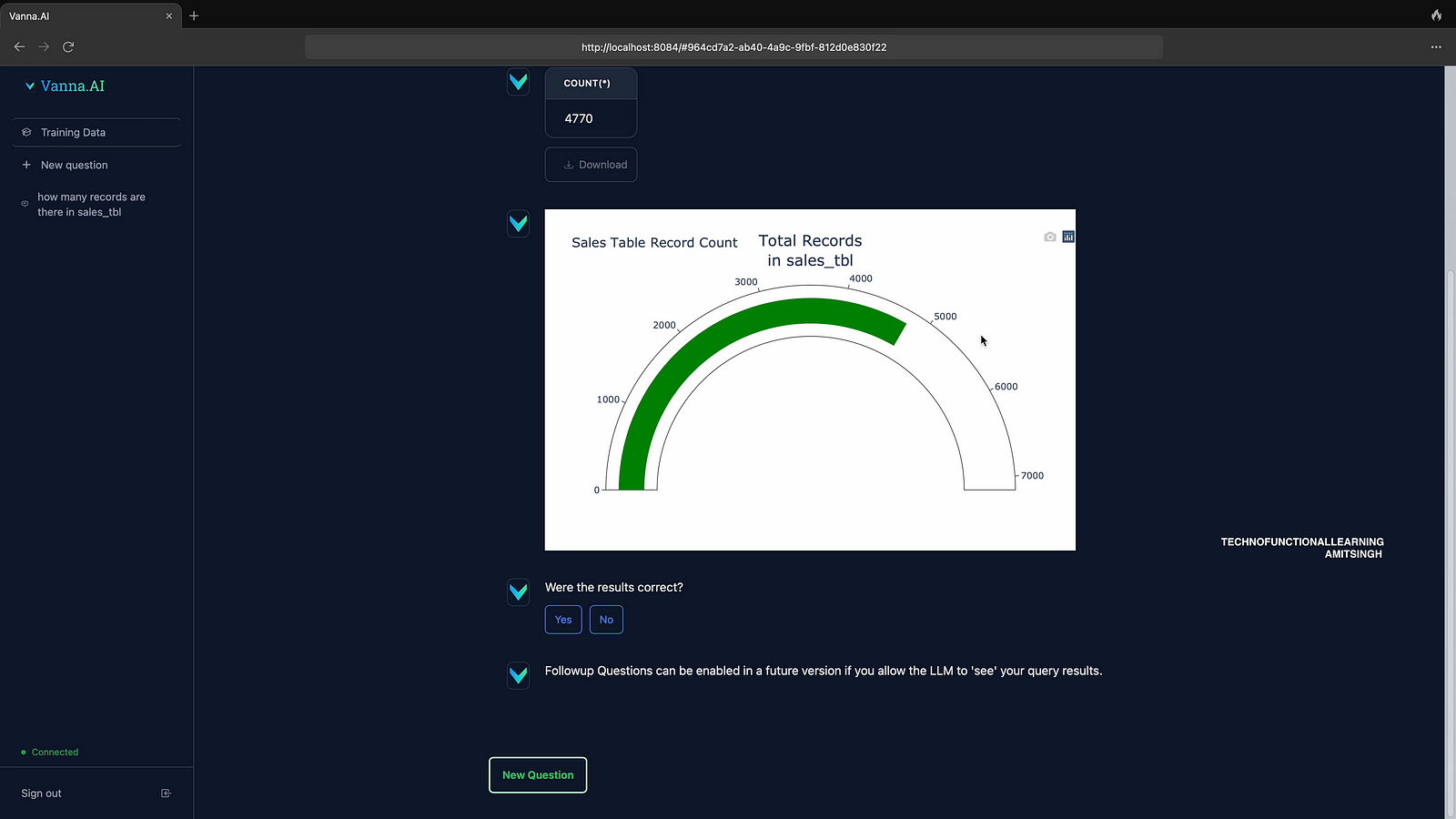

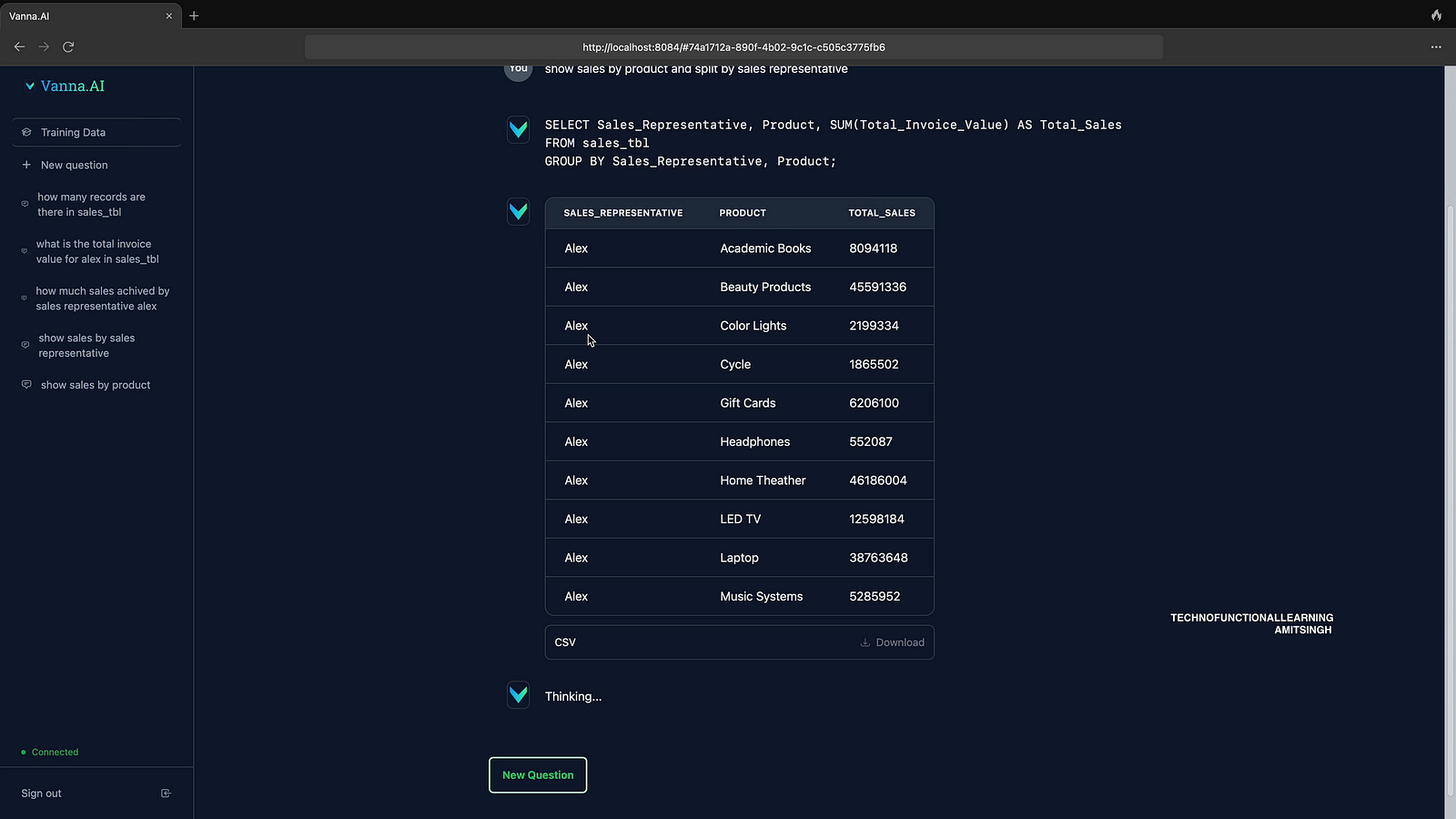

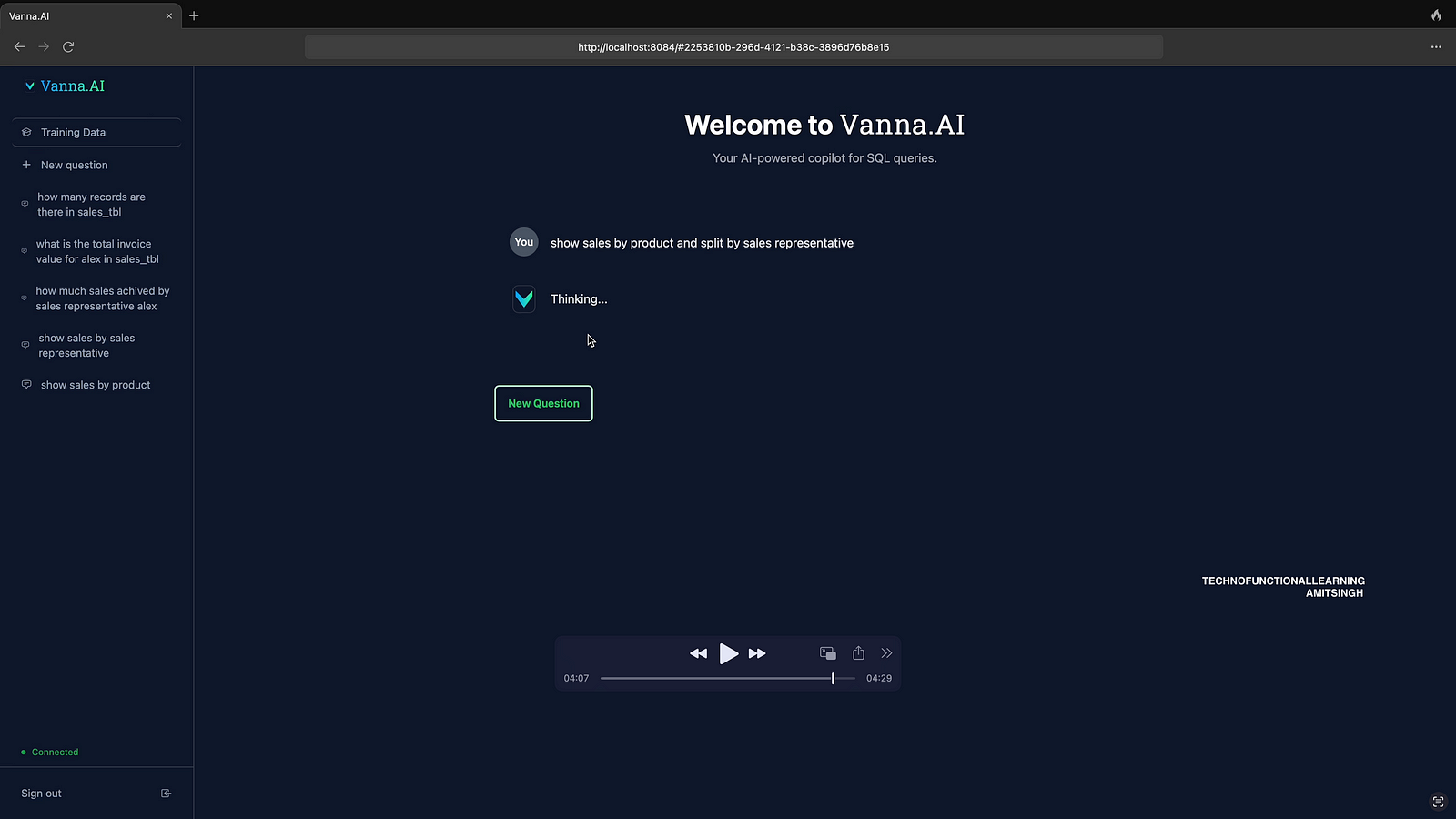

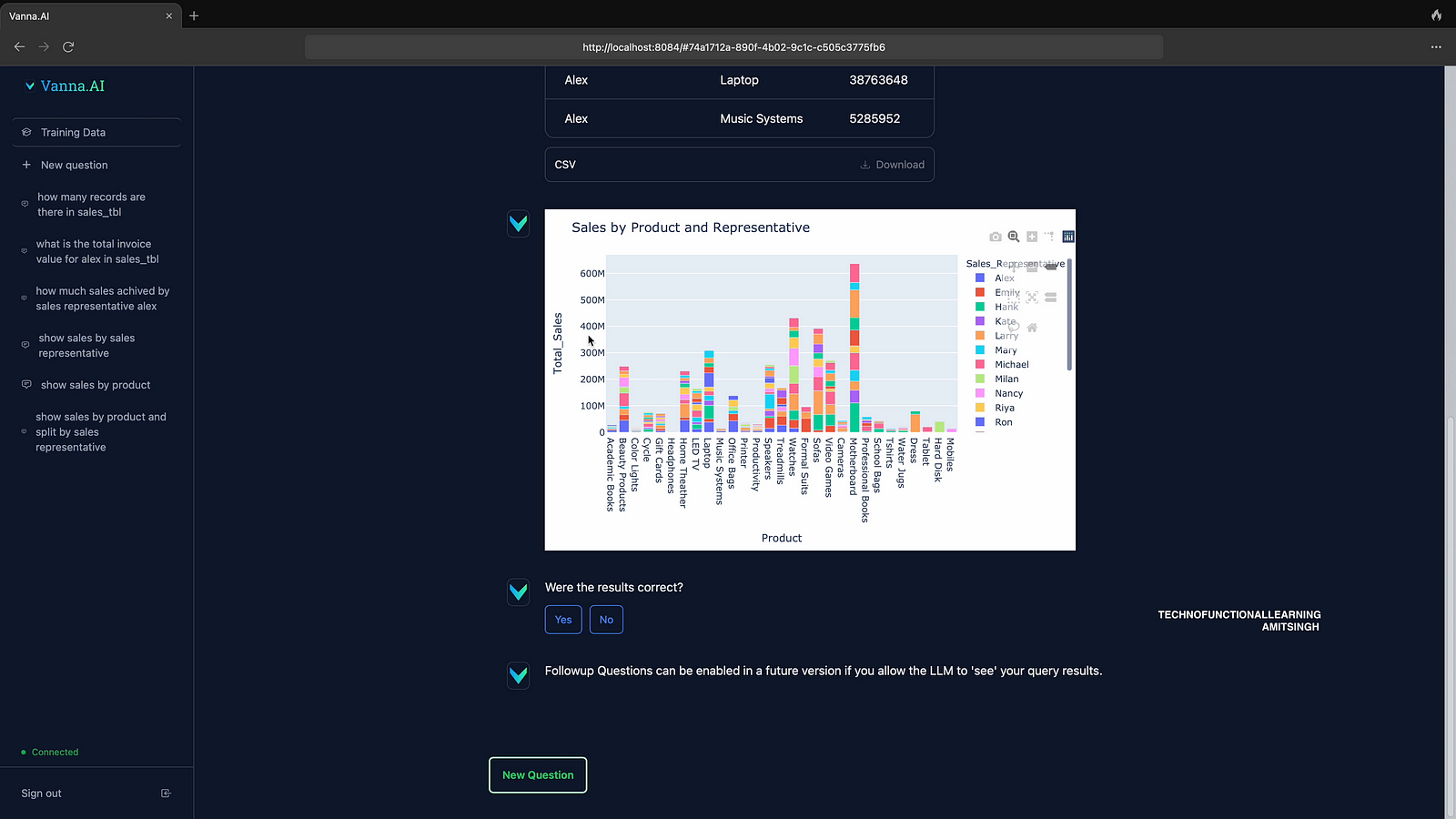

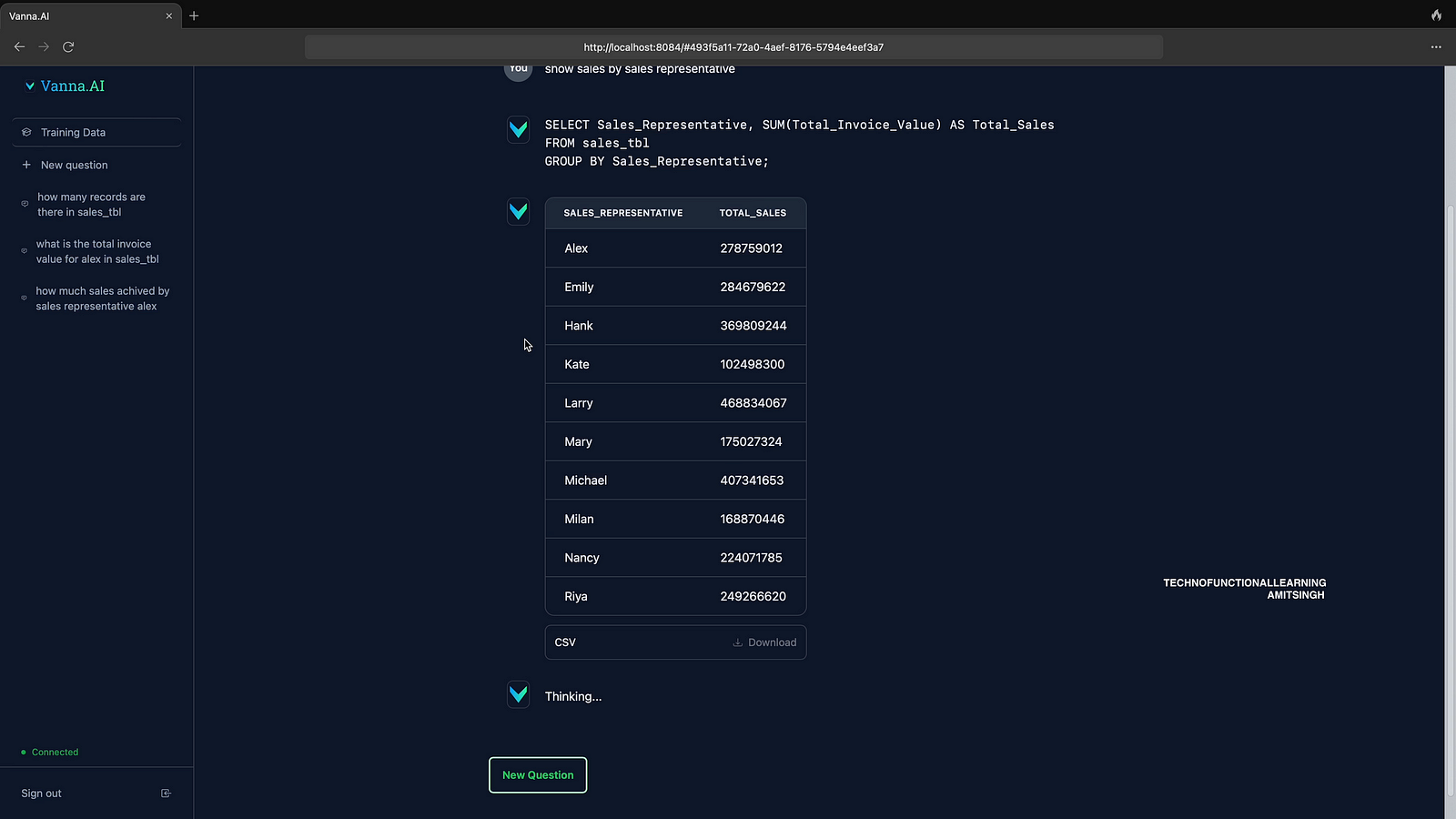

Step 09: Now Start asking question in Natural Language First it will show results and then generate automated Visualization based on Plotly like show below.
